Cisco Route Map Example Route Map Commands This chapter contains the following sections match ip address Policy Routing on page 2 match ipv6 address Policy Routing on page 3 route map Policy Routing on page 4 set ip next hop on page 6 set ipv6 next hop on page 7 show route map on page 8 match ip address Policy Routing
Example for Route Maps The following example shows how to redistribute routes with a hop count equal to 1 into OSPF The ASA redistributes these routes as external LSAs with a metric of 5 and a metric type of Type 1 Route maps are similar to access lists they both have criteria for matching the details of certain packets and an action of permitting or denying those packets This chapter explains the basics of Route Maps Included are sample exercises to help you practice administration and use of
Cisco Route Map Example
Cisco Route Map Example
https://www.certificationkits.com/assets/images/stories/ccnp-route/ch-4-2-ccnp-route-maps/cisco-ccnp-route-map-6.jpg

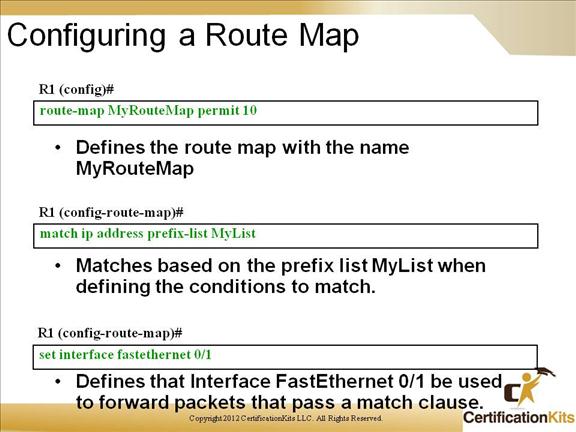

Cisco CCNP ROUTE Route Maps
https://www.certificationkits.com/assets/images/stories/ccnp-route/ch-4-2-ccnp-route-maps/cisco-ccnp-route-map-7.jpg
Cisco CCNP ROUTE Route Maps
https://www.certificationkits.com/assets/images/stories/ccnp-route/ch-4-2-ccnp-route-maps/cisco-ccnp-route-map-9.jpg
In redistribution a route map is applied to each route installed into the routing table by the protocol specified in the redistribute command Therefore when a router executes a route map the router interprets only the commands which make sense in the context of route map application A route map is a construct used in Cisco network devices that allows you to define a set of sequential rules or statements each with a permit or deny condition for the purpose of matching filtering modifying and acting upon traffic of prefixes
Route maps are a powerful tool used to manipulate routing information and policies within a network They allow network administrators to control and influence how routes are advertised received and selected on Cisco routers Consider a simple route map example test with route information as the target of the route map process We assume that the standard ACLs check the network address to identify the route information
